CSL 25/32/42

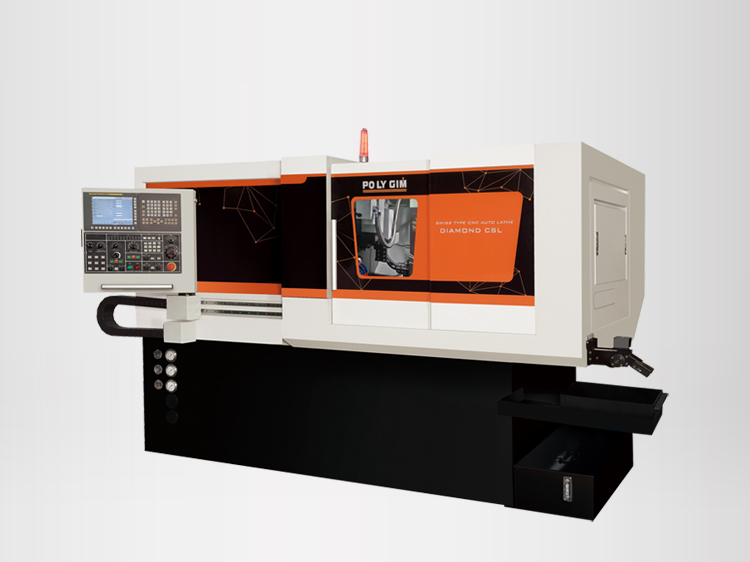

Swiss Type CNC Lathe

Diamond CSL Series

E-Catalog

Video Online

Discover the future of precision machining with our Sliding Head Turning solutions. These machines bring together Swiss Type CNC technology and advanced sliding head capabilities for unparalleled accuracy. Ideal for intricate parts and complex geometries, our Sliding Head Turning machines are engineered for high-speed, high-quality output. Elevate your machining process to new heights of efficiency with these cutting-edge systems.

Machine Features

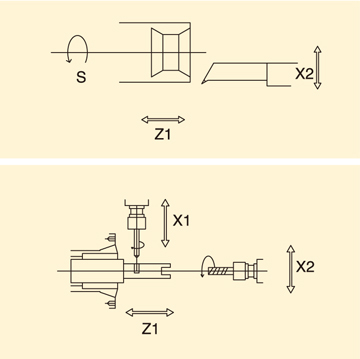

Cross spindle and bevel driven tool holes will help you to do drilling, milling and tapping on cross side and bevel.

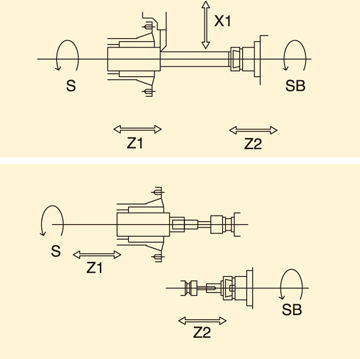

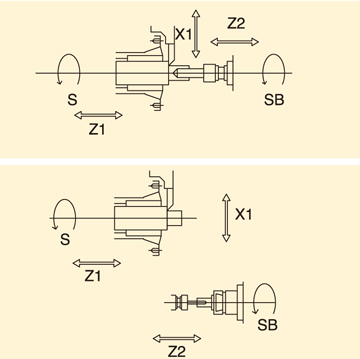

Cross travel sub-spindle design, the main and sub-spindle can work either one at a time or simultaneously for reduced machining duration.

This design bring multi-function front and rear machining.

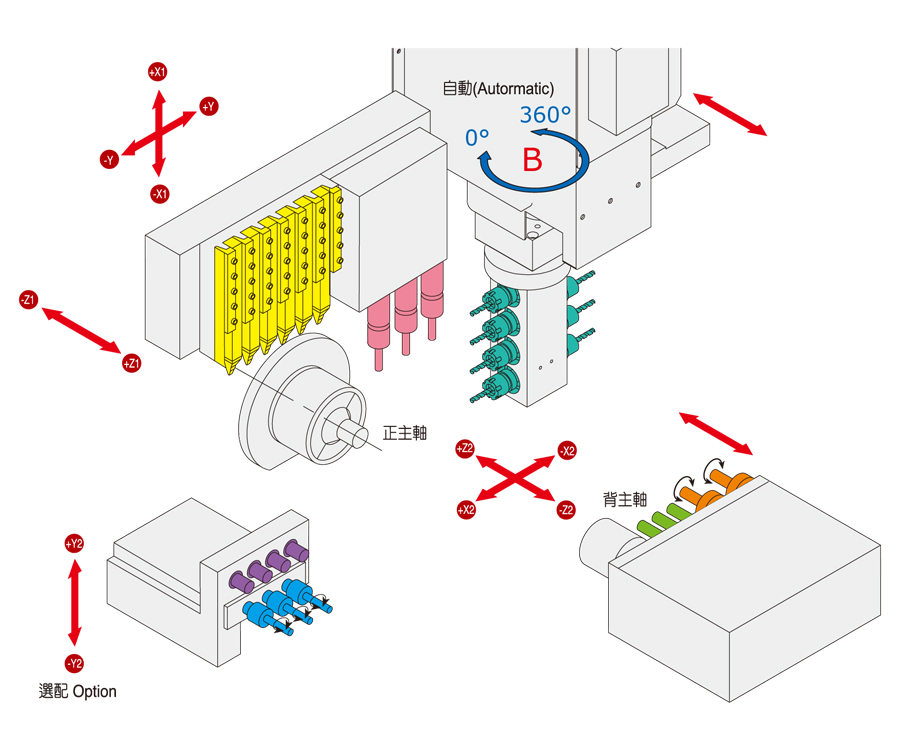

The B-axis bevel driven tool holder can be rotated 360 degrees tofacilitate bevel drilling, milling and tapping with the main and rear spindle.

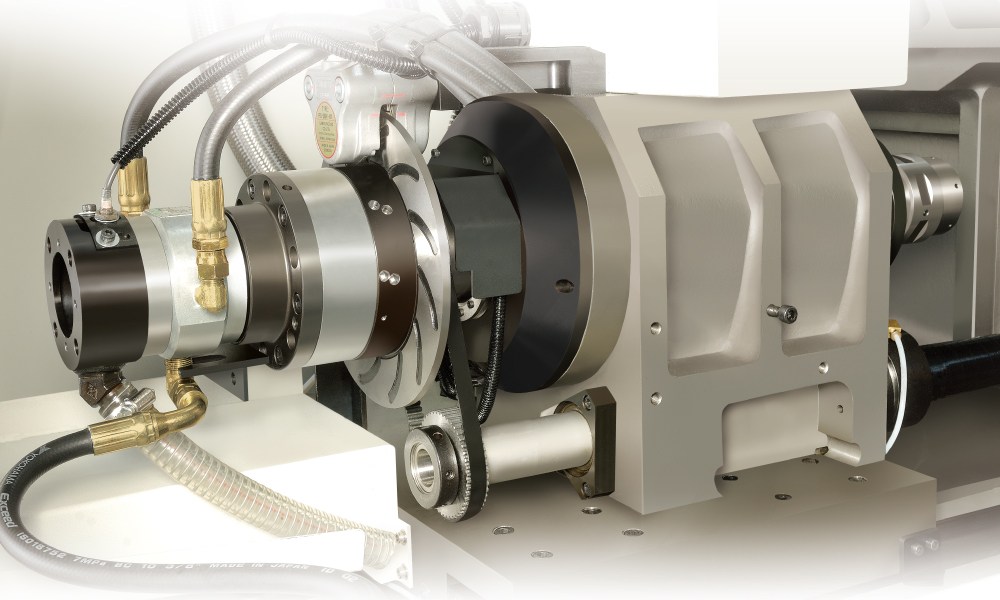

Main spindle is equipped with built-in motor, and the standard is equipped with C axis. A high-analytic CS axis is optional.

Sub-spindle is equipped with servo motor, and the standard is 5 degree indexing. C-axis is optional.

There are 2 fixed and 2 power drills on the tool holder beside the sub-spindle, which can move forward and backward. It is suitable for deep hole processing.

Examples:

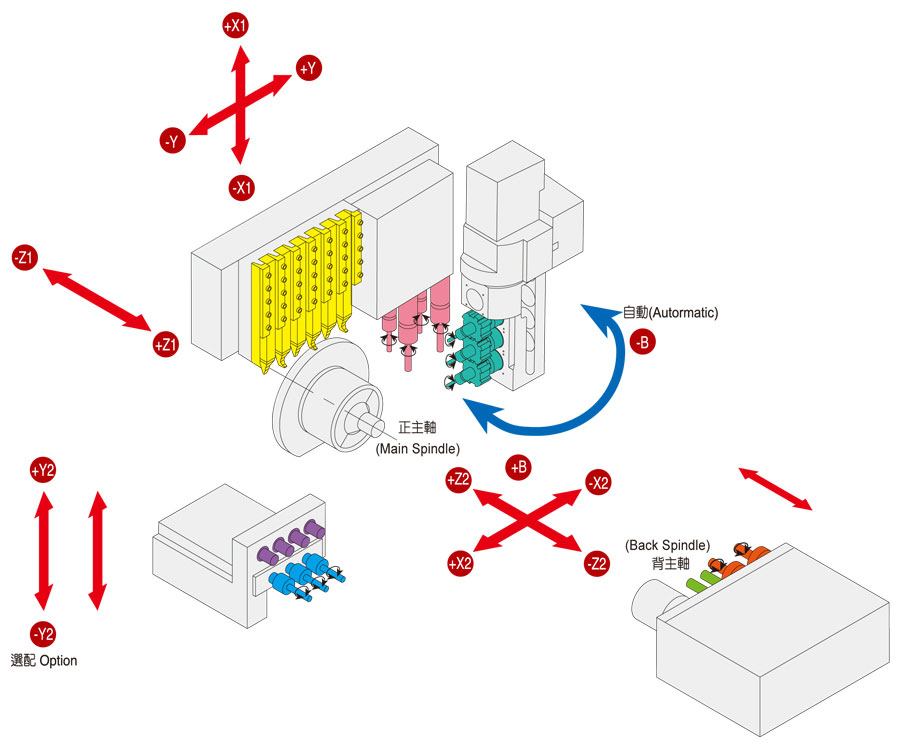

Model: Swiss Type CNC Lathe (Sliding Head Turning) - DIAMOND 25/32/42 CSL

6 pcs O.D Turning tool holder ( 42 CSL 5pcs)
6 pcs Cross working driven tool holder
3 / 6 pcs Bevel driven tool holder
2 pcs I.D stationary tool holder
2 pcs Front working driven tool holder
4 pcs Back I.D stationary tool holder
3 pcs Back working driven tool holder

  • Standard Accessories
  •  Controller : Fanuc 0i –TF PLUS / Fanuc 31i-B (Opt. Y2 axis)
  •  Main spindle C axis orientation
  •  Back spindle 5º orientation
  •  Working light
  •  Coolant system
  •  Part off detective sensor
  •  Part catcher
  •  Live bushing
  •  O.D turning tool holder ----- 5~7pcs
  •  Front I.D stationary tool holder ----- 2~3pcs
  •  Back I.D stationary tool holde ----- 4pcs
  •  Cross working driven tool holder ----- 6 / 5pcs (with Evermore)
  • Option Accessories
  •  Controller : Mitsubishi M80 / Mitsubishi M830 (Opt. Y2 axis)
  •  Front working driven tool holder ----- 2pcs
  •  360゜b-axis bevel driven tool holder ----- 3 / 6 / 8pcs
  •  Back working driven tool holder ----- 3 / 7 pcs (Opt. Evermore)
  •  CS axis ( 0.001° orientation-Fanuc / 0.01° orientation-Mitsubishi)
  •     ----- Main spindle
  •  C axis ----- Sub-spindle
  •  Chip conveyer + Bucket
  •  Rough material bushing
  •  Y2 Axis

7 pcs O.D turning tool holder (42CSL 6pcs)
6 pcs cross working deiven tool holder
8 pcs 360° B axis bevel driven tool holder
3 pcs I.D stationary tool holder ( 42CSL 2 pcs)
2 pcs front off-center driven tool holder
4 pcs back I.D stationary tool holder
3 pcs back off-center driven tool holder

Using Live Bushing with Guide Bush

Remnant Material 150 mm

Using Rough Material Bushing without Guide Bush

Remnant Material 50 mm

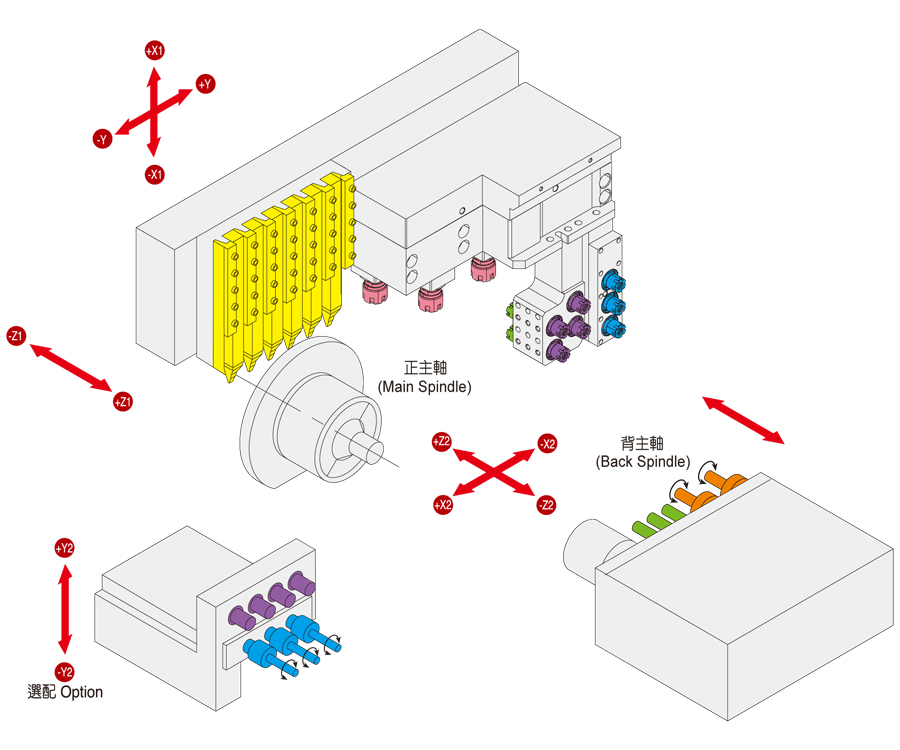

Cancel the 8 pcs B-axis bevel driven tool holder and replace a off-center driven tool holder

7 pcs O.D Turning tool holder ( 42 CSL 6pcs)
6 pcs Cross working driven tool holder
4 pcs + 3 pcs (42 CSL 2pcs) Front I.D stationary tool holder
3 pcs + 2 pcs Front working driven tool holder
4 pcs + 4 pcs Back I.D stationary tool holder
3 pcs + 3 pcs Back working driven tool holder

  • Standard Accessories
  •  Controller : Fanuc 0i –TF PLUS
  •  Main spindle C axis orientation
  •  Back spindle 5º orientation
  •  Working light
  •  Coolant system
  •  Part off detective sensor
  •  Part catcher
  •  Live bushing
  •  O.D turning tool holder ----- 7pcs (42CSL 6pcs)
  •  Front I.D stationary tool holder ----- 3pcs (42CSL 2pcs)
  •  Back I.D stationary tool holder ----- 4pcs
  •  Front/Back I.D stationary tool holder ----- 4/4pcs
  •  Front/Back working driven tool holde ----- 3/3pcs
  •  Cross working driven tool holder ----- 6 or 5pcs(with Evermore)
  • Option Accessories
  •  Controller : Mitsubishi M80
  •  Front working driven tool holder ----- 2pcs
  •  Back working driven tool holder ----- 3 / 7pcs(Opt. Evermore)
  •  CS axis ( 0.001° orientation-Fanuc / 0.01° orientation-Mitsubishi)
  •     ----- Main spindle
  •  C axis ----- Sub-spindle
  •  Chip conveyer + Bucket
  •  Rough material bushing
  •  Y2 Axis

Video

CSL B Axis Machine (Swiss Type CNC Lathe / Sliding Head Turning)

Machine Specifications:


Items 25 CSL
Working Range Max. Turning Dia. Ø26mm
Max. maching length per chucking 250mm
Max. Drilling Dia. Ø26mm
Max. Tapping Dia M16
Tooling System O.D.Tooling(B axis with 3/6 pcs) 6
O.D.Tooling(B axis with 8 pcs) 7
O.D.Tool Dimension □16x16x120
(Front) I.D. Tooling(B axis with 3/6 pcs) 2
(Front) I.D. Tooling(B axis with 8 pcs) 3
Tool Dimension 13 mm (ER20)
(Back) I.D.Tooling 4
Tool Dimension 13 mm (ER20)
Cross Tooling 6
Tool Dimension 13 mm (ER20)
Speed 200~6000 r.p.m.
(Opt.) Bevel Drill / Mill Tooling(B axis with 3/6 pcs) 3/6
(Opt.) Bevel Drill / Mill Tooling(B axis with 8 pcs) 8
Tool Dimension 13mm (ER20)
Speed 100~6000rpm
(Opt.) Front Drilling Tooling 2
Tool Dimension 13mm (ER20)
Speed 200~6000rpm
(Opt.) Back Drilling Tooling 3
Tool Dimension 13mm (ER20)
Speed 100~4000rpm
Spindle Spindle Hole Dia. Ø26mm
Spindle Speed 200~7000rpm
Indexing C axis
Back Spindle Back Spindle Hole Dia. Ø25mm
Back Spindle Speed 200~6000rpm
Indexing 5°
Max. length for front ejection 70mm
Max. workpiece projection length from the back spindle 120mm
Max.Back Drilling Dia. Ø16mm
Max. Back Tapping Dia. M12
Rapid Traverse X1, Z1, Y1, X2, Z2 Axes 18 or 30 m/min
(Opt.) Y2 Axis 18 or 30 m/min
Motors Main Spindle Motor 3.7/5.5kW
Back Spindle Motor 2.2kW
X1, Z1, Y1, X2, Z2 Axes Motor 1.2kW
(Opt.) Y2, B Axes Motor 0.75kW
Cross driven spindle Motor 2.2kW
(Opt.) Bevel driven spindle Motor(B axis with 3/6 pcs) 1kW
(Opt.) Bevel driven spindle Motor(B axis with 8 pcs) 2.2kW
(Opt.) Back driven spindle Motor 0.75kW
(Opt. Y2 Axis) Back driven spindle Motor 1kW
Coolant Pump 0.75kw x 2
Lubrication 4w x 2
Machine Dimensions Center Height 960mm / 1020mm(a plug-in electrical cabinet)
Weight(Standard) 3988 / 4368(Opt. Y2)
Weight(a plug-in electrical cabinet) 4550 / 4930(Opt. Y2)
Machine Size(Standard) 3000x1540x1940 mm
Machine Size(a plug-in electrical cabinet) 3220x1800x2005 mm
Air Air Pressure 5kg/cm
Air Supply 10L/min
* We reserve the rights to change the design without any prior notification.

Items 32 CSL
Working Range Max. Turning Dia. Ø32mm
Max. maching length per chucking 250mm
Max. Drilling Dia. Ø26mm
Max. Tapping Dia M16
Tooling System O.D.Tooling(B axis with 3/6 pcs) 6
O.D.Tooling(B axis with 8 pcs) 7
O.D.Tool Dimension □16x16x120
(Front) I.D. Tooling(B axis with 3/6 pcs) 2
(Front) I.D. Tooling(B axis with 8 pcs) 3
Tool Dimension 13 mm (ER20)
(Back) I.D.Tooling 4
Tool Dimension 13 mm (ER20)
Cross Tooling 6
Tool Dimension 13 mm (ER20)
Speed 200~6000 r.p.m.
(Opt.) Bevel Drill / Mill Tooling(B axis with 3/6 pcs) 3/6
(Opt.) Bevel Drill / Mill Tooling(B axis with 8 pcs) 8
Tool Dimension 13mm (ER20)
Speed 100~6000rpm
(Opt.) Front Drilling Tooling 2
Tool Dimension 13mm (ER20)
Speed 200~6000rpm
(Opt.) Back Drilling Tooling 3
Tool Dimension 13mm (ER20)
Speed 100~4000rpm
Spindle Spindle Hole Dia. Ø33mm
Spindle Speed 200~7000rpm
Indexing C axis
Back Spindle Back Spindle Hole Dia. Ø33mm
Back Spindle Speed 200~6000rpm
Indexing 5°
Max. length for front ejection 70mm
Max. workpiece projection length from the back spindle 120mm
Max.Back Drilling Dia. Ø16mm
Max. Back Tapping Dia. M12
Rapid Traverse X1, Z1, Y1, X2, Z2 Axes 18 or 30 m/min
(Opt.) Y2 Axis 18 or 30 m/min
Motors Main Spindle Motor 3.7/5.5kW
Back Spindle Motor 2.2kW
X1, Z1, Y1, X2, Z2 Axes Motor 1.2kW
(Opt.) Y2, B Axes Motor 0.75kW
Cross driven spindle Motor 2.2kW
(Opt.) Bevel driven spindle Motor(B axis with 3/6 pcs) 1kW
(Opt.) Bevel driven spindle Motor(B axis with 8 pcs) 2.2kW
(Opt.) Back driven spindle Motor 0.75kW
(Opt. Y2 Axis) Back driven spindle Motor 1kW
Coolant Pump 0.75kw x 2
Lubrication 4w x 2
Machine Dimensions Center Height 960mm / 1020mm(a plug-in electrical cabinet)
Weight(Standard) 3988 / 4368(Opt. Y2)
Weight(a plug-in electrical cabinet) 4550 / 4930(Opt. Y2)
Machine Size(Standard) 3000x1540x1940 mm
Machine Size(a plug-in electrical cabinet) 3220x1800x2005 mm
Air Air Pressure 5kg/cm
Air Supply 10L/min
* We reserve the rights to change the design without any prior notification.

Items 42 CSL
Working Range Max. Turning Dia. Ø42mm
Max. maching length per chucking 250mm
Max. Drilling Dia. Ø26mm
Max. Tapping Dia M16
Tooling System O.D.Tooling(B axis with 3/6 pcs) 5
O.D.Tooling(B axis with 8 pcs) 6
O.D.Tool Dimension □16x16x120
(Front) I.D. Tooling(B axis with 3/6 pcs) 2
(Front) I.D. Tooling(B axis with 8 pcs) 2
Tool Dimension 13 mm (ER20)
(Back) I.D.Tooling 4
Tool Dimension 13 mm (ER20)
Cross Tooling 6
Tool Dimension 13 mm (ER20)
Speed 200~6000 r.p.m.
(Opt.) Bevel Drill / Mill Tooling(B axis with 3/6 pcs) 3/6
(Opt.) Bevel Drill / Mill Tooling(B axis with 8 pcs) 8
Tool Dimension 13mm (ER20)
Speed 100~6000rpm
(Opt.) Front Drilling Tooling 2
Tool Dimension 13mm (ER20)
Speed 200~6000rpm
(Opt.) Back Drilling Tooling 3
Tool Dimension 13mm (ER20)
Speed 100~4000rpm
Spindle Spindle Hole Dia. Ø42mm
Spindle Speed 200~5000rpm
Indexing C axis
Back Spindle Back Spindle Hole Dia. Ø42mm
Back Spindle Speed 200~5000rpm
Indexing 5°
Max. length for front ejection 70mm
Max. workpiece projection length from the back spindle 120mm
Max.Back Drilling Dia. Ø16mm
Max. Back Tapping Dia. M12
Rapid Traverse X1, Z1, Y1, X2, Z2 Axes 18 or 30 m/min
(Opt.) Y2 Axis 18 or 30 m/min
Motors Main Spindle Motor 18.5/30kW
Back Spindle Motor 2.2kW
X1, Z1, Y1, X2, Z2 Axes Motor 1.2kW
(Opt.) Y2, B Axes Motor 0.75kW
Cross driven spindle Motor 2.2kW
(Opt.) Bevel driven spindle Motor(B axis with 3/6 pcs) 1kW
(Opt.) Bevel driven spindle Motor(B axis with 8 pcs) 2.2kW
(Opt.) Back driven spindle Motor 0.75kW
(Opt. Y2 Axis) Back driven spindle Motor 1kW
Coolant Pump 0.75kw x 2
Lubrication 4w x 2
Machine Dimensions Center Height 960mm / 1020mm(a plug-in electrical cabinet)
Weight(Standard) 4088 / 4468(Opt. Y2)
Weight(a plug-in electrical cabinet) 4650 / 5030(Opt. Y2)
Machine Size(Standard) 3000x1540x1940 mm
Machine Size(a plug-in electrical cabinet) 3220x1800x2005 mm
Air Air Pressure 5kg/cm
Air Supply 10L/min
* We reserve the rights to change the design without any prior notification.
