SUPER CSL
CNC Lathe
Machine Features:
The SUPER CSL from Poly Gim is a multitasking turning center designed for Turning/milling operations. In addition to equip with various tool holders to meet versatile machining requirements , this machine is also designed with main and sub-spindle that allow any complicated part to be accomplished with only one setup.
Twin Y-axes design.- B-axis can be rotated 360˚ to perform any degree of drilling, tapping and milling operations.
- B-axis rotation is driven by a servo motor, providing high indexing accuracy of 0.001˚.
- Main and sub-spindle speed : 3,000 rpm.
- Through hole diameter of main and sub-spindle:Ø65 mm.
- Both main and sub-spindle have Cs-axes function for performing contour machining.
- All moving axes are mounted with heavy duty, roller type linear motion guides.
- Fixed type spindle structure.
- The machine base is manufactured from high quality cast iron, tempered and stress relieved to eliminate structural deformation problems.
Tooling System:
Tooling System for main Spindle
Tooling System for Sub-spindle

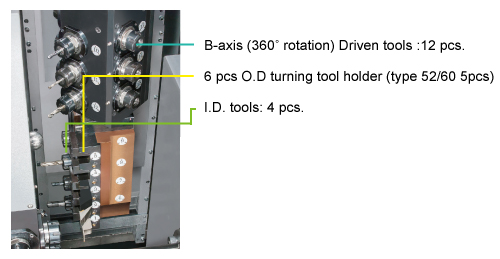

SYSTEM 1
6 pcs O.D turning tool holder (type 52 / 60 5pcs)
4 pcs I.D stationary tool hold
12 pcs 360° B axis driven tool holder

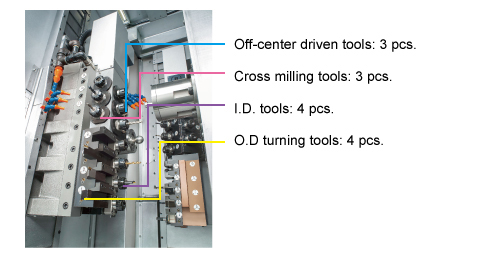

SYSTEM 2
4 pcs O.D turning tool holder
4 pcs I.D stationary tool holdr
3 pcs cross working driven tool holder
3 pcs back off-center driven tool holder
Standard Accessories:
- Main spindle
- Sub-spindle
- CS axis orientation for both spindle
- Working Light
- Coolant System
- Part off Detective Sensor
- Part Catcher
- Spindle Coolant Device
- System 1
- 6 pcs O.D turning tool holder (type 52 / 60 5pcs)
- 4 pcs I.D. Stationary Tool Holder
- 12 pcs 360° Automatic Rotary Driven Tool Holder
- System 2
- 4 pcs O.D. Turning Tool Holder
- 4 pcs I.D. Stationary Tool Holder
- 3 pcs Cross Working Driven Tool Holder
- 3 pcs Off-center Working Driven Tool Holder
Option Accessories:
Chip Conveyer + Bucket- Fedek Bar Feeder DH65L ( 1.5M)
- Oil Coolant Device
Machine Specifications:
| Items | SUPER CSL 42 | SUPER CSL 42 | |
|---|---|---|---|
| SYSTEM 1 | SYSTEM 2 | ||
| Working Rang | Max. Machining Dia. | Ø42mm | Ø42mm |
| Max. Machining Length | part diameter x 3 | ||
| Max. Drilling Capacity | Ø30mm | Ø30mm | |
| Toolong System | O.D. Turning Tool | 6 | 4 |
| O.D. Turning Tool Dimension | □20x20x80 | □20x20x80 | |
| I.D. Tool | 4 | 4 | |
| I.D. Tool Dimension | Ø25mm | Ø25mm | |
| Cross Tool (power – driven tool) | 3 | ||
| Cross Tool Dimension | 16mm (ER25) | ||
| Cross Tool Speed | 200~6000rpm | ||
| Off-center driven Tool | 3 | ||
| Off-center driven Tool Dimension | 16mm (ER25) | ||
| Off-center driven Tool Speed | 200~6000rpm | ||
| 360° Automatic Rotary Driven Tool | 12 | ||
| 360° Automatic Rotary Driven Tool Dimension | 16mm (ER25) | ||
| 360° Automatic Rotary Driven Tool Speed | 200~6000rpm | ||
| Spindle | Spindle Hole Dia. | Ø46mm | |
| Spindle speed | 100~6000rpm | ||
| Sub-spindle | Sub-spindle Hole Dia. | Ø46mm | |
| Sub-spindle Speed | 100~6000rpm | ||
| Sub-spindle Max. Drilling Dia. | Ø30mm | ||
| X1, Y1, Z1 axes | 20m/min | ||
| X2, Y2, Z2 axes | 20m/min | ||
| Motors | Main Spindle | 7.5/11 kw | |
| Sub-spindle | 7.5/11 kw | ||
| Y1, Y2 axes | 2.2 kw | 2.2 kw | |
| X1, X2, Z1, Z2 axes | 1.5 kw | 1.5 kw | |
| B axes | 1 kw | ||
| Rotary Tools | 4 kw x 2 | ||
| Coolant Pump | 1 HP | 1 HP | |
| Lubrication | 25w | 25w | |
| Machine Dimensions | Center Height | 1125 mm | |
| Weight | 8300 kgs | ||
| Dimension | 2900x2330x2270 mm | ||
| Dimension (with chip conveyor) | 3850x2330x2270 mm | ||
| Air | Air Pressure | 5kg/cm | |
| Air Supply | 10L/min | ||
| Items | SUPER CSL 52 | SUPER CSL 52 | |
|---|---|---|---|
| SYSTEM 1 | SYSTEM 2 | ||
| Working Rang | Max. Machining Dia. | Ø52mm | Ø52mm |
| Max. Machining Length | part diameter x 3 | ||
| Max. Drilling Capacity | Ø30mm | Ø30mm | |
| Toolong System | O.D. Turning Tool | 5 | 4 |
| O.D. Turning Tool Dimension | □25X25X80 | □25X25X80 | |
| I.D. Tool | 4 | 4 | |
| I.D. Tool Dimension | Ø25mm | Ø25mm | |
| Cross Tool (power – driven tool) | 3 | ||
| Cross Tool Dimension | 16mm (ER25) | ||
| Cross Tool Speed | 200~6000rpm | ||
| Off-center driven Tool | 3 | ||
| Off-center driven Tool Dimension | 16mm (ER25) | ||
| Off-center driven Tool Speed | 200~6000rpm | ||
| 360° Automatic Rotary Driven Tool | 12 | ||
| 360° Automatic Rotary Driven Tool Dimension | 16mm (ER25) | ||
| 360° Automatic Rotary Driven Tool Speed | 200~6000rpm | ||
| Spindle | Spindle Hole Dia. | Ø60mm | |
| Spindle speed | 100~6000rpm | ||
| Sub-spindle | Sub-spindle Hole Dia. | Ø60mm | |
| Sub-spindle Speed | 100~6000rpm | ||
| Sub-spindle Max. Drilling Dia. | Ø30mm | ||
| X1, Y1, Z1 axes | 20m/min | ||
| X2, Y2, Z2 axes | 20m/min | ||
| Motors | Main Spindle | 7.5/11 kw | |
| Sub-spindle | 7.5/11 kw | ||
| Y1, Y2 axes | 2.2 kw | 2.2 kw | |
| X1, X2, Z1, Z2 axes | 1.5 kw | 1.5 kw | |
| B axes | 1 kw | ||
| Rotary Tools | 4 kw x 2 | ||
| Coolant Pump | 1 HP | 1 HP | |
| Lubrication | 25w | 25w | |
| Machine Dimensions | Center Height | 1125 mm | |
| Weight | 8400 kgs | ||
| Dimension | 2900x2330x2270 mm | ||
| Dimension (with chip conveyor) | 3850x2330x2270 mm | ||
| Air | Air Pressure | 5kg/cm | |
| Air Supply | 10L/min | ||
| Items | SUPER CSL 60 | SUPER CSL 60 | |
|---|---|---|---|
| SYSTEM 1 | SYSTEM 2 | ||
| Working Rang | Max. Machining Dia. | Ø60mm | Ø60mm |
| Max. Machining Length | part diameter x 3 | ||
| Max. Drilling Capacity | Ø30mm | Ø30mm | |
| Toolong System | O.D. Turning Tool | 5 | 4 |
| O.D. Turning Tool Dimension | □25X25X80 | □25X25X80 | |
| I.D. Tool | 4 | 4 | |
| I.D. Tool Dimension | Ø25mm | Ø25mm | |
| Cross Tool (power – driven tool) | 3 | ||
| Cross Tool Dimension | 16mm (ER25) | ||
| Cross Tool Speed | 200~6000rpm | ||
| Off-center driven Tool | 3 | ||
| Off-center driven Tool Dimension | 16mm (ER25) | ||
| Off-center driven Tool Speed | 200~6000rpm | ||
| 360° Automatic Rotary Driven Tool | 12 | ||
| 360° Automatic Rotary Driven Tool Dimension | 16mm (ER25) | ||
| 360° Automatic Rotary Driven Tool Speed | 200~6000rpm | ||
| Spindle | Spindle Hole Dia. | Ø65mm | |
| Spindle speed | 100~3000rpm | ||
| Sub-spindle | Sub-spindle Hole Dia. | Ø65mm | |
| Sub-spindle Speed | 100~3000rpm | ||
| Sub-spindle Max. Drilling Dia. | Ø30mm | ||
| X1, Y1, Z1 axes | 20m/min | ||
| X2, Y2, Z2 axes | 20m/min | ||
| Motors | Main Spindle | 7.5/11 kw | |
| Sub-spindle | 7.5/11 kw | ||
| Y1, Y2 axes | 2.2 kw | 2.2 kw | |
| X1, X2, Z1, Z2 axes | 1.5 kw | 1.5 kw | |
| B axes | 1 kw | ||
| Rotary Tools | 4 kw x 2 | ||
| Coolant Pump | 1 HP | 1 HP | |
| Lubrication | 25w | 25w | |
| Machine Dimensions | Center Height | 1125 mm | |
| Weight | 8500 kgs | ||
| Dimension | 2900x2330x2270 mm | ||
| Dimension (with chip conveyor) | 3850x2330x2270 mm | ||
| Air | Air Pressure | 5kg/cm | |
| Air Supply | 10L/min | ||
